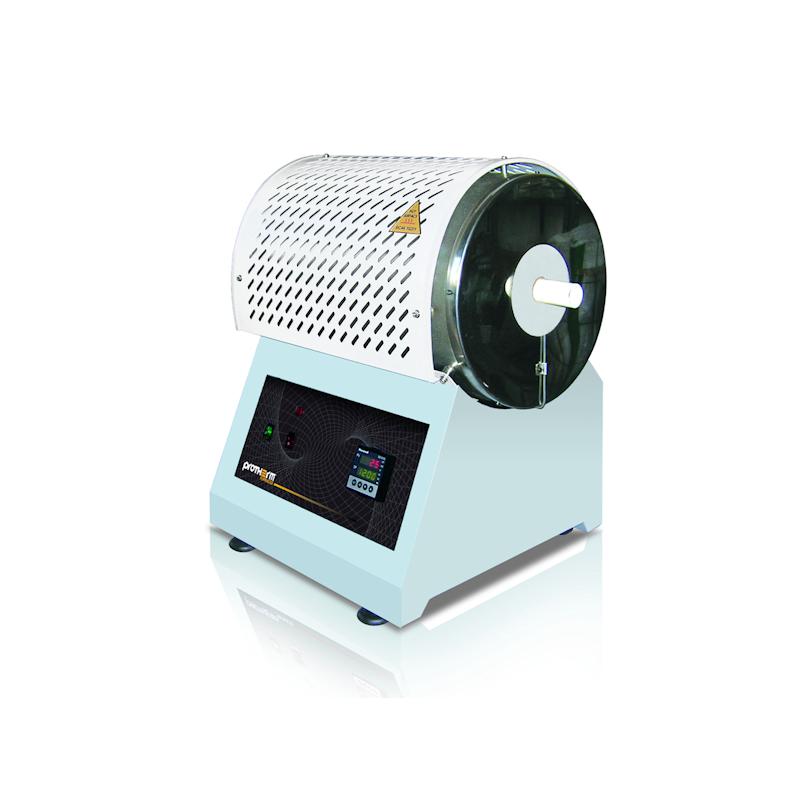

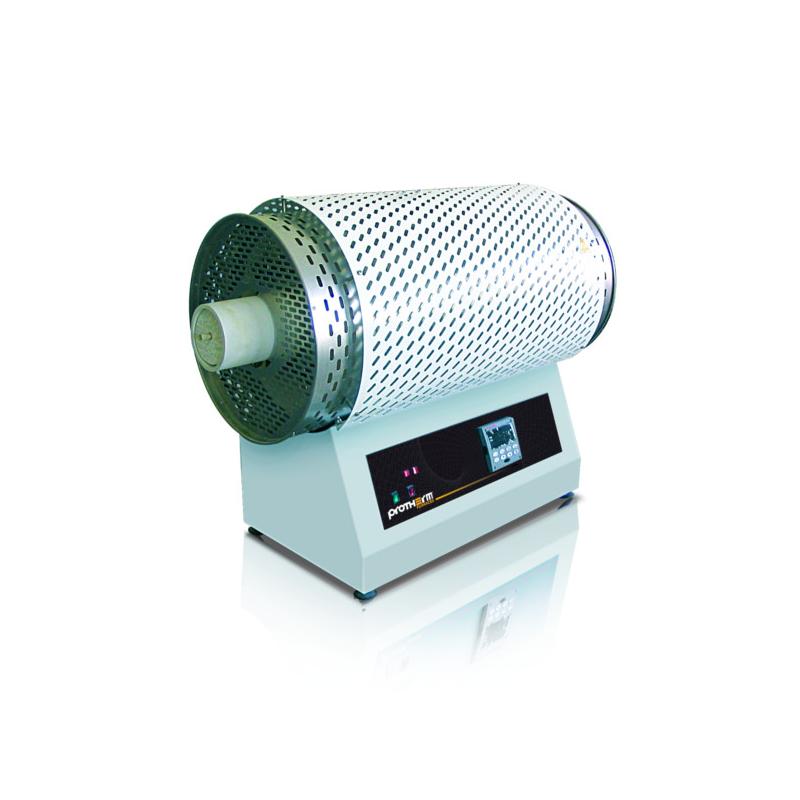

PTF Series Tube Furnaces

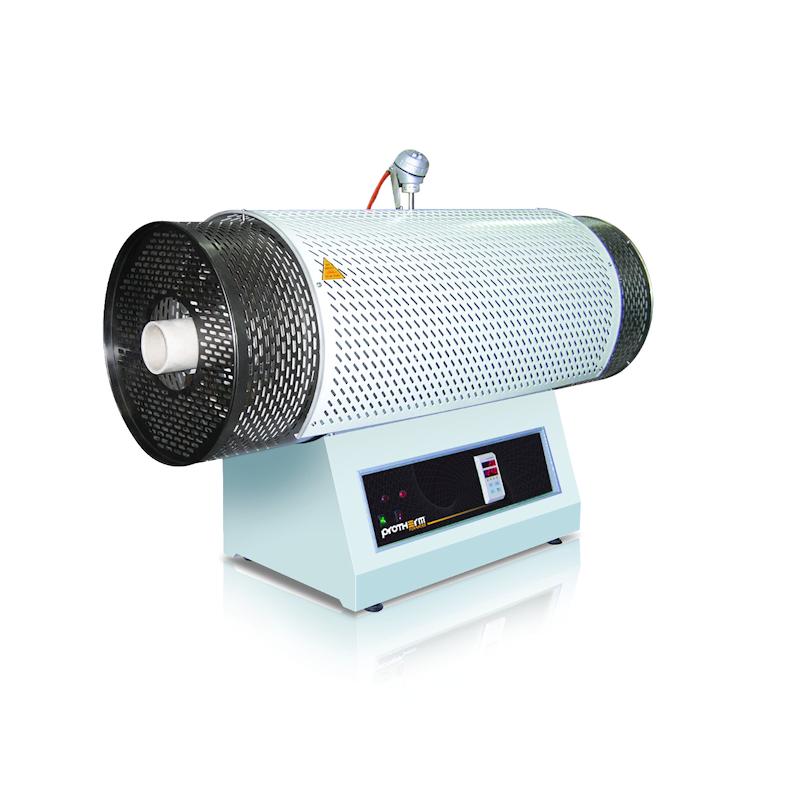

PTF 14/75/610

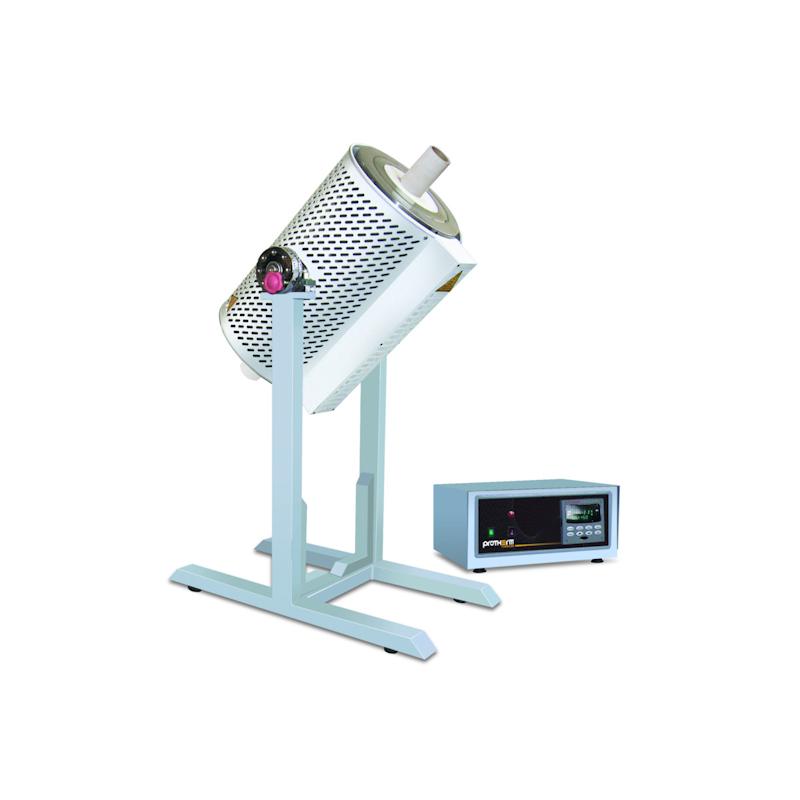

PTF series tube furnaces are tube furnaces that could be used when laboratory experimentation is performed horizontally, vertically, or at specific angles.

Configuration of the tilt angle, and the stable temperature environment make these furnaces suitable for many possible processes.

Standard PTF series furnaces cover a range from 1100°C to 1600°C, using wire and SiC heating elements for processes.

SiC heating rods installed parallel to the working tube ensuring perfect temperature uniformity and easy replacement.


Furnace Accessories
Download Brochure
Request a Quote



System Features

Standard working tube of C610 and C799
Separate or integrated control system
Customized controller option
High-quality fiber material
Galvanized coating covered epoxy paint structure
System operation with solid-state-relays
High level temperature uniformity
Standard long working tube protruding from sides suitable for operation with flanges
Electrical protection
High quality heating elements ensuring a long service life
Intuitive controller user interface

Specifications

Model Maximum Temperature (°C) Continuous Operating Temperature (°C) Heated Zone (mm) Stable Zone Length (mm) External Dimensions (mm) Tube size (Dø x length) Tube Type Weight (kg) Power (kW) Phase
PTF 12/20/250 1200 1150 250 80 495x350x345 20x500 C610 14 0.6 1
PTF 12/20/400 1200 1150 400 130 495x450x345 20x600 C610 18 0.7 1
PTF 12/38/250 1200 1150 250 80 495x350x345 40x250 C610 21 0.8 1
PTF 12/38/450 1200 1150 450 150 495x500x345 40x450 C610 22 1.0 1
PTF 12/38/600 1200 1150 600 200 495x650x345 40x800 C610 23 1.3 1
PTF 12/50/250 1200 1150 250 80 495x350x345 50x450 C610 23 1.0 1
PTF 12/50/450 1200 1150 450 150 495x500x345 50x650 C610 23 1.3 1
PTF 12/50/600 1200 1150 600 200 635x650x400 50x800 C610 29 1.4 1
PTF 12/75/600 1200 1150 600 200 635x650x400 75x800 C610 32 1.9 1
PTF 12/75/800 1200 1150 800 260 635x850x400 75x1000 C610 37 2.1 1
PTF 12/105/500 1200 1150 500 160 675x550x400 105x750 C610 31 2.3 1
PTF 12/105/750 1200 1150 750 250 675x800x400 105x1000 C610 36 3.1 1
PTF 12/105/900 1200 1150 900 300 675x950x400 105x1200 C610 41 3.1 1
PTF 14/20/180 1400 1350 180 60 520x600x350 26x600 C610 19 1.5 1
PTF 14/20/250 1400 1350 250 80 520x665x350 26x600 C610 22 1.8 1
PTF 14/38/180 1400 1350 180 60 675x600x400 40x750 C610 27 2.5 1
PTF 14/38/250 1400 1350 250 80 675x665x400 40x800 C610 28 3.0 1
PTF 14/50/180 1400 1350 180 60 675x600x400 50x750 C610 30 2.5 2
PTF 14/50/250 1400 1350 250 80 675x665x400 50x800 C610 38 3.0 2
PTF 14/50/450 1400 1350 450 150 745x850x400 50x1000 C610 40 4.0 2
PTF 14/50/610 1400 1350 610 200 745x1150x400 50x1300 C610 50 4.5 2
PTF 14/75/450 1400 1350 450 150 745x850x400 75x1000 C610 70 5.5 2
PTF 14/75/610 1400 1350 610 200 745x1150x400 75x1300 C610 82 6.5 2
PTF 14/105/450 1400 1350 450 150 785x850x400 100x1000 C610 90 7.0 2
PTF 14/105/610 1400 1350 610 200 785x1150x400 100x1300 C610 95 7.5 3
PTF 15/38/180 1500 1450 180 60 675x600x400 40x750 C799 31 2.3 1
PTF 15/50/180 1500 1450 180 60 675x600x400 50x750 C799 33 2.5 2
PTF 15/50/250 1500 1450 250 80 675x665x400 50x800 C799 46 3.0 2
PTF 15/50/450 1500 1450 450 150 745x850x400 50x1000 C799 48 4.0 2
PTF 15/50/610 1500 1450 610 200 745x1150x400 50x1300 C799 52 5.0 2
PTF 15/75/450 1500 1450 450 150 745x850x400 75x1000 C799 73 6.0 2
PTF 15/75/610 1500 1450 610 200 745x1150x400 75x1300 C799 85 7.0 2
PTF 16/38/250 1600 1550 250 80 675x350x400 40x800 C799 42 3.5 3
PTF 16/50/250 1600 1550 250 80 675x665x400 50x800 C799 46 4.0 2
PTF 16/50/450 1600 1550 450 150 745x850x400 50x1000 C799 48 5.5 2
PTF 16/50/610 1600 1550 610 200 745x1150x400 50x1300 C799 52 6.0 3
PTF 16/75/450 1600 1550 450 150 745x850x400 75x1000 C799 73 6.5 3
PTF 16/75/610 1600 1550 610 200 745x1150x400 75x1300 C799 85 7.5 3
Model Maximum Temperature (°C) Continuous Operating Temperature (°C) Heated Zone (mm) Stable Zone Length (mm) External Dimensions (mm)
PTF 12/20/250 1200 1150 250 80 495x350x345
PTF 12/20/400 1200 1150 400 130 495x450x345
PTF 12/38/250 1200 1150 250 80 495x350x345
PTF 12/38/450 1200 1150 450 150 495x500x345
PTF 12/38/600 1200 1150 600 200 495x650x345
PTF 12/50/250 1200 1150 250 80 495x350x345
PTF 12/50/450 1200 1150 450 150 495x500x345
PTF 12/50/600 1200 1150 600 200 635x650x400
PTF 12/75/600 1200 1150 600 200 635x650x400
PTF 12/75/800 1200 1150 800 260 635x850x400
PTF 12/105/500 1200 1150 500 160 675x550x400
PTF 12/105/750 1200 1150 750 250 675x800x400
PTF 12/105/900 1200 1150 900 300 675x950x400
PTF 14/20/180 1400 1350 180 60 520x600x350
PTF 14/20/250 1400 1350 250 80 520x665x350
PTF 14/38/180 1400 1350 180 60 675x600x400
PTF 14/38/250 1400 1350 250 80 675x665x400
PTF 14/50/180 1400 1350 180 60 675x600x400
PTF 14/50/250 1400 1350 250 80 675x665x400
PTF 14/50/450 1400 1350 450 150 745x850x400
PTF 14/50/610 1400 1350 610 200 745x1150x400
PTF 14/75/450 1400 1350 450 150 745x850x400
PTF 14/75/610 1400 1350 610 200 745x1150x400
PTF 14/105/450 1400 1350 450 150 785x850x400
PTF 14/105/610 1400 1350 610 200 785x1150x400
PTF 15/38/180 1500 1450 180 60 675x600x400
PTF 15/50/180 1500 1450 180 60 675x600x400
PTF 15/50/250 1500 1450 250 80 675x665x400
PTF 15/50/450 1500 1450 450 150 745x850x400
PTF 15/50/610 1500 1450 610 200 745x1150x400
PTF 15/75/450 1500 1450 450 150 745x850x400
PTF 15/75/610 1500 1450 610 200 745x1150x400
PTF 16/38/250 1600 1550 250 80 675x350x400
PTF 16/50/250 1600 1550 250 80 675x665x400
PTF 16/50/450 1600 1550 450 150 745x850x400
PTF 16/50/610 1600 1550 610 200 745x1150x400
PTF 16/75/450 1600 1550 450 150 745x850x400
PTF 16/75/610 1600 1550 610 200 745x1150x400

Model Tube size (Dø x length) Tube Type Weight (kg) Power (kW) Phase
PTF 12/20/250 20x500 C610 14 0.6 1
PTF 12/20/400 20x600 C610 18 0.7 1
PTF 12/38/250 40x250 C610 21 0.8 1
PTF 12/38/450 40x450 C610 22 1.0 1
PTF 12/38/600 40x800 C610 23 1.3 1
PTF 12/50/250 50x450 C610 23 1.0 1
PTF 12/50/450 50x650 C610 23 1.3 1
PTF 12/50/600 50x800 C610 29 1.4 1
PTF 12/75/600 75x800 C610 32 1.9 1
PTF 12/75/800 75x1000 C610 37 2.1 1
PTF 12/105/500 105x750 C610 31 2.3 1
PTF 12/105/750 105x1000 C610 36 3.1 1
PTF 12/105/900 105x1200 C610 41 3.1 1
PTF 14/20/180 26x600 C610 19 1.5 1
PTF 14/20/250 26x600 C610 22 1.8 1
PTF 14/38/180 40x750 C610 27 2.5 1
PTF 14/38/250 40x800 C610 28 3.0 1
PTF 14/50/180 50x750 C610 30 2.5 2
PTF 14/50/250 50x800 C610 38 3.0 2
PTF 14/50/450 50x1000 C610 40 4.0 2
PTF 14/50/610 50x1300 C610 50 4.5 2
PTF 14/75/450 75x1000 C610 70 5.5 2
PTF 14/75/610 75x1300 C610 82 6.5 2
PTF 14/105/450 100x1000 C610 90 7.0 2
PTF 14/105/610 100x1300 C610 95 7.5 3
PTF 15/38/180 40x750 C799 31 2.3 1
PTF 15/50/180 50x750 C799 33 2.5 2
PTF 15/50/250 50x800 C799 46 3.0 2
PTF 15/50/450 50x1000 C799 48 4.0 2
PTF 15/50/610 50x1300 C799 52 5.0 2
PTF 15/75/450 75x1000 C799 73 6.0 2
PTF 15/75/610 75x1300 C799 85 7.0 2
PTF 16/38/250 40x800 C799 42 3.5 3
PTF 16/50/250 50x800 C799 46 4.0 2
PTF 16/50/450 50x1000 C799 48 5.5 2
PTF 16/50/610 50x1300 C799 52 6.0 3
PTF 16/75/450 75x1000 C799 73 6.5 3
PTF 16/75/610 75x1300 C799 85 7.5 3

Optional Features

Over-temperature limiter for thermal protection
Display of inner tube temperature with an additional thermocouple
Check valve at gas outlet
Gas supply and blend systems for operation
Alternative working tubes

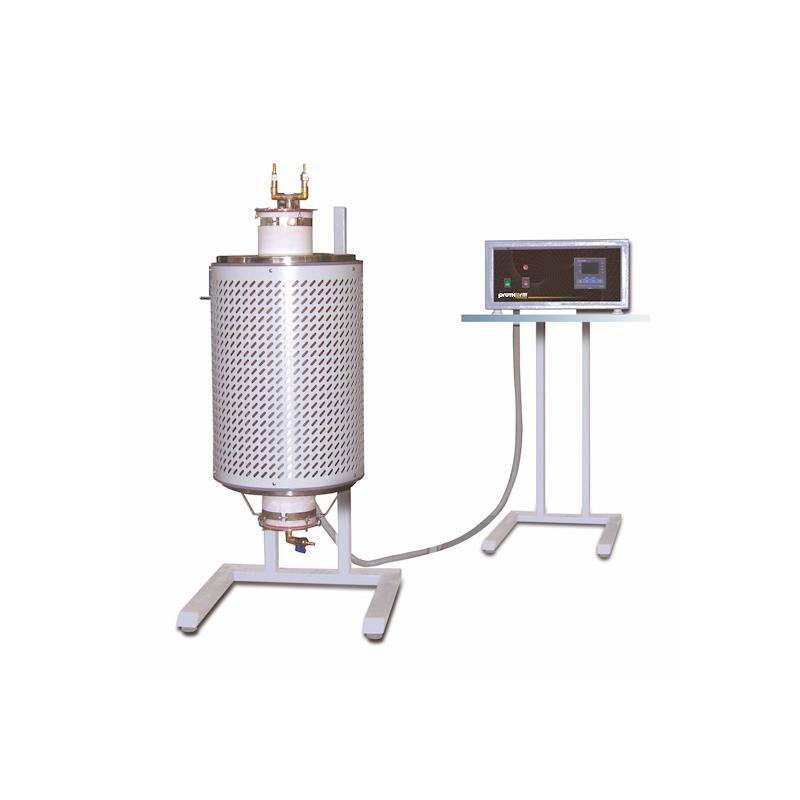

Gas and water cooled vacuum flanges

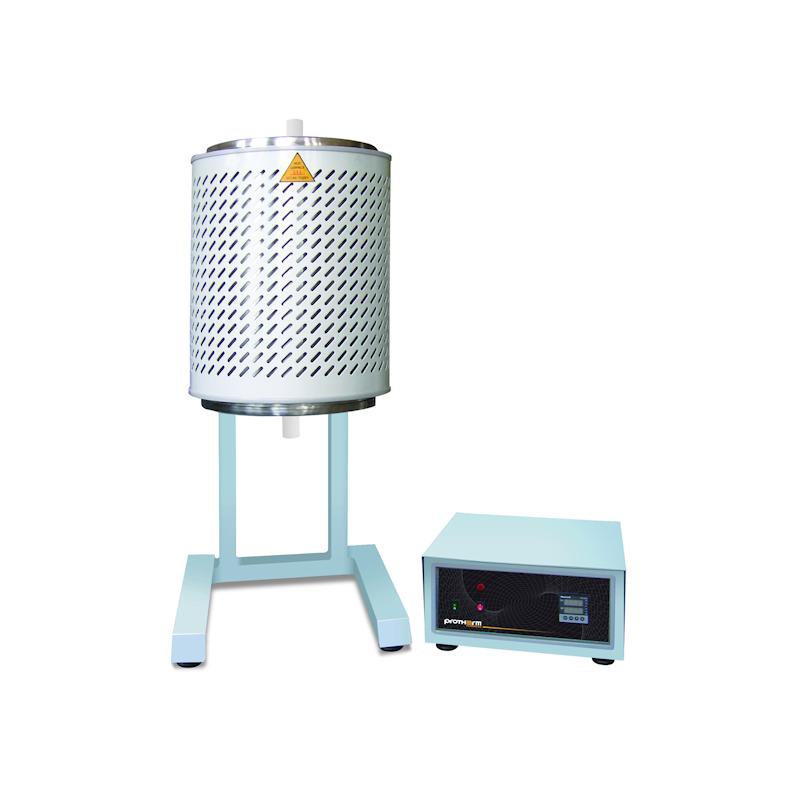

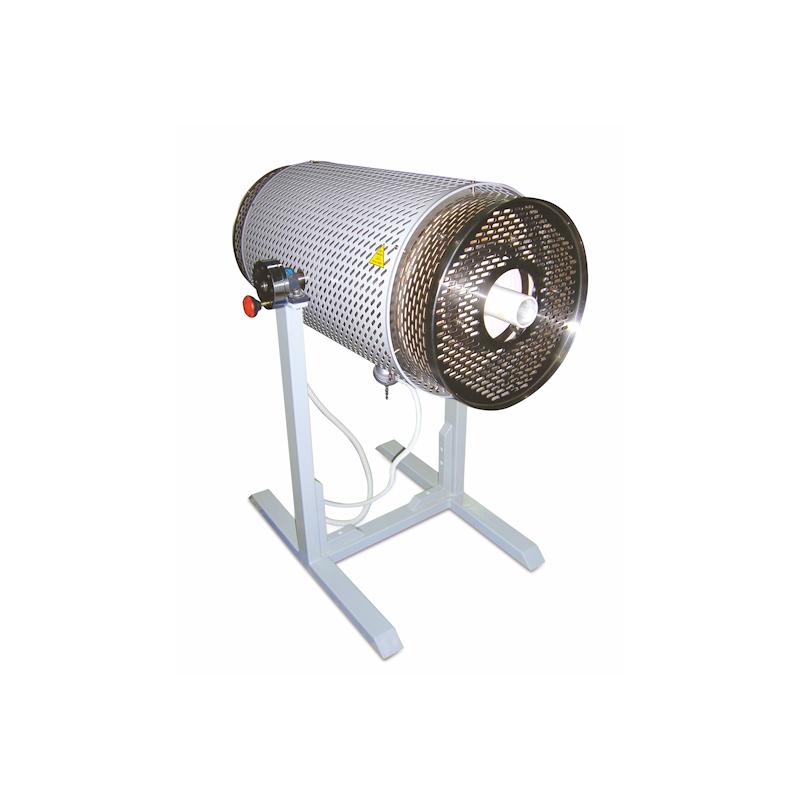

Universal design for vertical and angular usage
Data logger with the software
RS422/485 communication
