Protherm Furnaces provide a wide range of
temperature controller options for customers to
choose from.Furnaces are equipped with the clients’ choice of controller.
All controllers provided by Protherm Furnaces have built in sockets and easy to replace, for faster and quicker servicing.
Touch screen controllers provided are specifically designed for the dental series, and can maintain the control of the temperature as well as the motorized equipment provided with the system.
Controllers used by Protherm Furnaces are especially provide a rugged, durable and user friendly utilization.
Controller Features
Rugged and durable design
Worldwide trusted brand options
Click on sockets for ease of change and service
High-quality material
High level temperature accuracy
Worldwide trusted brand options
Click on sockets for ease of change and service
High-quality material
High level temperature accuracy
Data export option
Suitability with thermocouples
Electrical protection
Durable and long lasting membrane buttons
Intuitive controller user interface
Suitability with thermocouples
Electrical protection
Durable and long lasting membrane buttons
Intuitive controller user interface
Specifications
| Brand | Model | Dimensions (HxW) (mm) | Display | Specs. | Alarm | Program Possibility | Number of Segments |

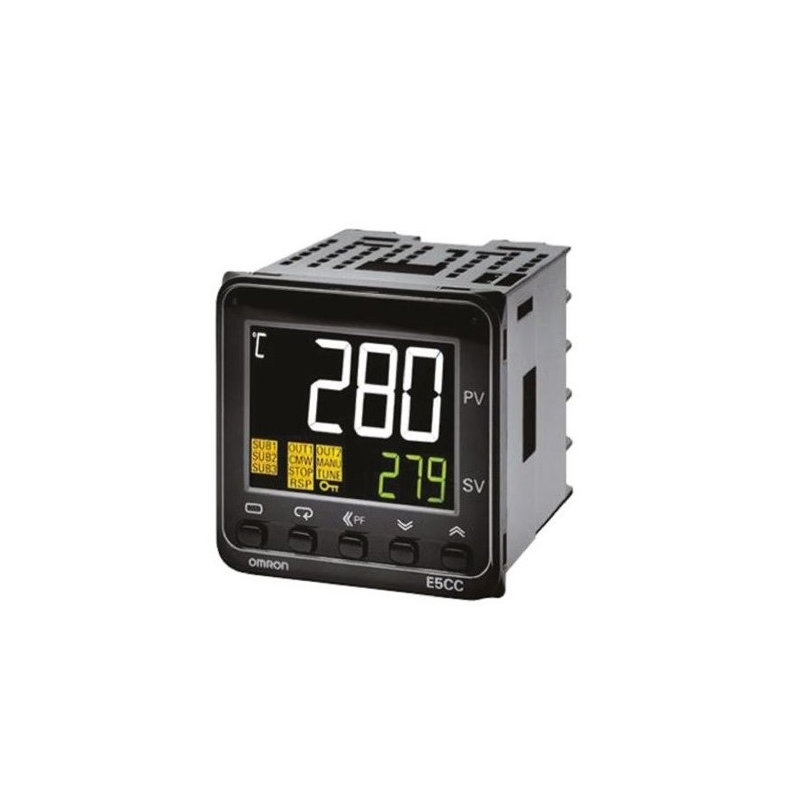

| Omron | E5CC | 48x48 | Dual | PID | Yes | N/A | none |
| Protherm | PC442T | 48x48 | Dual | PID | Yes | N/A | Timer |
| Protherm | PC442/18 | 72x72 | Dual | PID | Yes | Yes | 18 steps |
| Protherm | PC442/MP20 | 72x72 | Dual | PID | Yes | Yes | 20Prg x 30 Steps |
| Eurotherm | 3208 | 45x92 | Dual | PID | Yes | Yes | 5Prg x 4 Steps |
Controller Information
Honeywell DC1010
A simple and economical PID controller. Housed in 48 x 48 mms case (1/16 DIN) this controller has a dual display where set and actual temperature is observed. Several alarm definition features are possible.

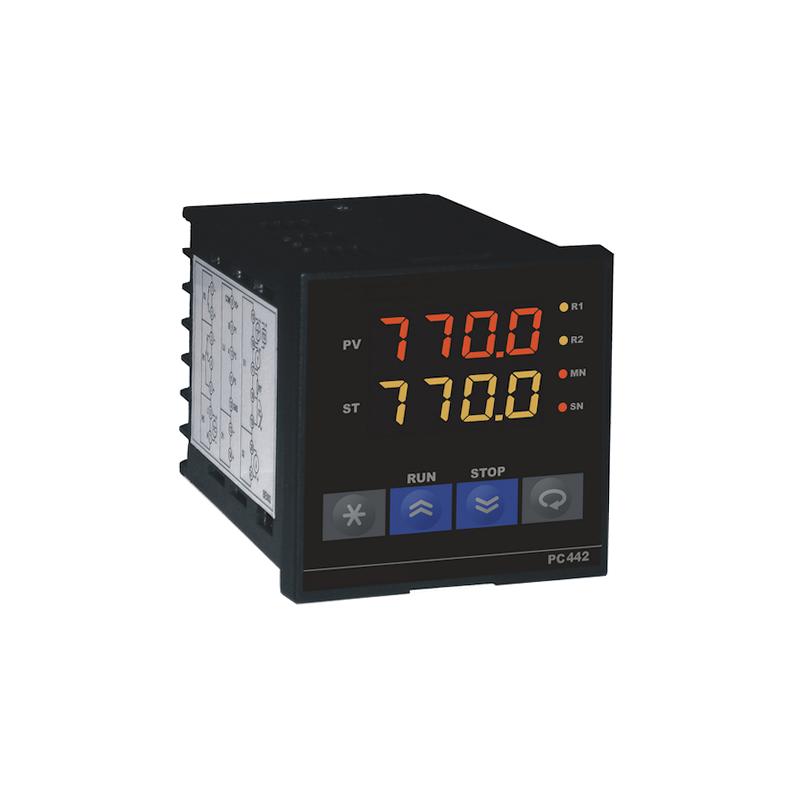

PC 442T
Housed in a 48x48mms case, PC 442T is the simplest type of PC series controller. Only the time function is available with this version of the PC series. This controller will turn off the furnace at a predetermined time slot. Alarm relay is standard and computer connection is available as an option. It provides a Hot Start facility thus restart of the program is a standard feature.
PC 442/18
Housed in a 72x72mms case, PC442/18 provide 18 steps of ramps and dwell times. Alarm relay is standard and computer connection is available as an option. It also provides Hot Start facility thus restart of the program is a standard feature.
PC 442/ MP20
The most functional version of 442 series, PC 442/MP5 provides 20 different programs for your satisfaction. With 30 steps available at each program, the controller has standard delay timer feature. Alarm relay is standard and computer connection is available as an option. It also provides Hot Start facility thus restart of the program is a standard feature.

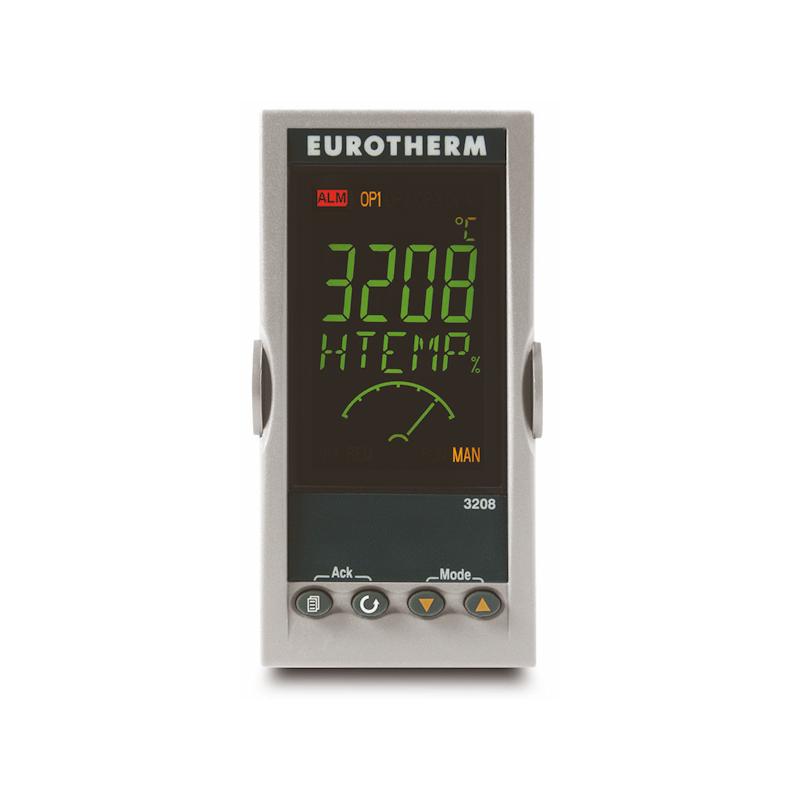

Eurotherm 3208
Eurotherm 3208 model provides 4 ramps and 4 dwells for each of the 5 programs that it obtains. Alarm relay is a standard feature and computer connection is available as an option with the controller.
A simple and economical PID controller. Housed in 48 x 48 mms case (1/16 DIN) this controller has a dual display where set and actual temperature is observed. Several alarm definition features are possible.
PC 442T
Housed in a 48x48mms case, PC 442T is the simplest type of PC series controller. Only the time function is available with this version of the PC series. This controller will turn off the furnace at a predetermined time slot. Alarm relay is standard and computer connection is available as an option. It provides a Hot Start facility thus restart of the program is a standard feature.
PC 442/18
Housed in a 72x72mms case, PC442/18 provide 18 steps of ramps and dwell times. Alarm relay is standard and computer connection is available as an option. It also provides Hot Start facility thus restart of the program is a standard feature.
PC 442/ MP20
The most functional version of 442 series, PC 442/MP5 provides 20 different programs for your satisfaction. With 30 steps available at each program, the controller has standard delay timer feature. Alarm relay is standard and computer connection is available as an option. It also provides Hot Start facility thus restart of the program is a standard feature.
Eurotherm 3208
Eurotherm 3208 model provides 4 ramps and 4 dwells for each of the 5 programs that it obtains. Alarm relay is a standard feature and computer connection is available as an option with the controller.
