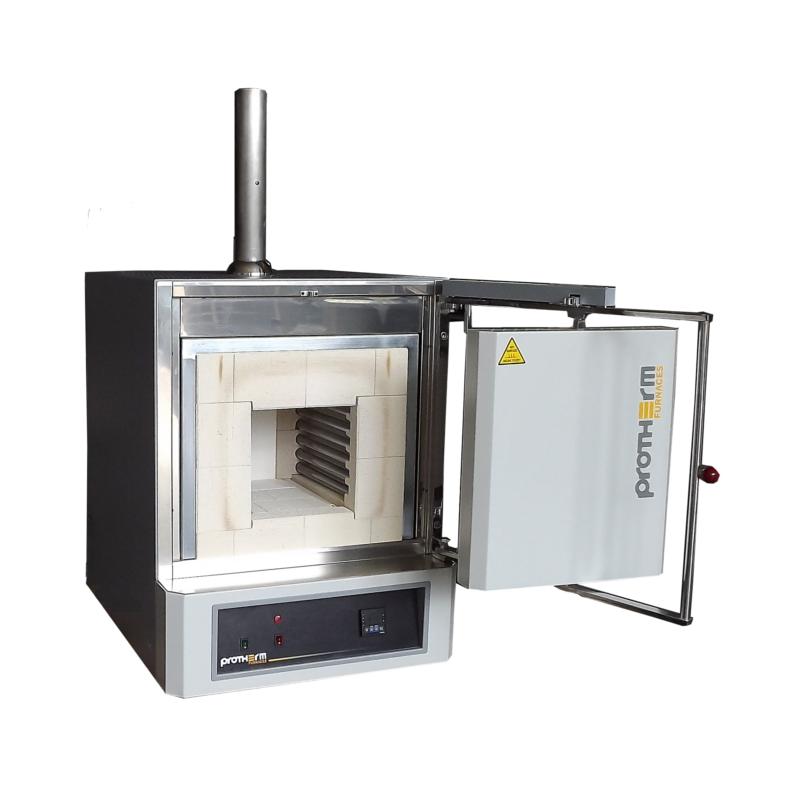

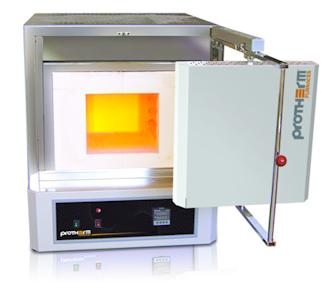

PAF series, with preheated air inlet system and sideways opening lid is particularly designed for ashing in the laboratory environment. A special air intake and exhaust system allows air exchange within the furnace. Incoming air is preheated, providing perfect temperature uniformity. PAF series is equipped with extra quartz protected heating elements, providing a longer service life for the furnace.

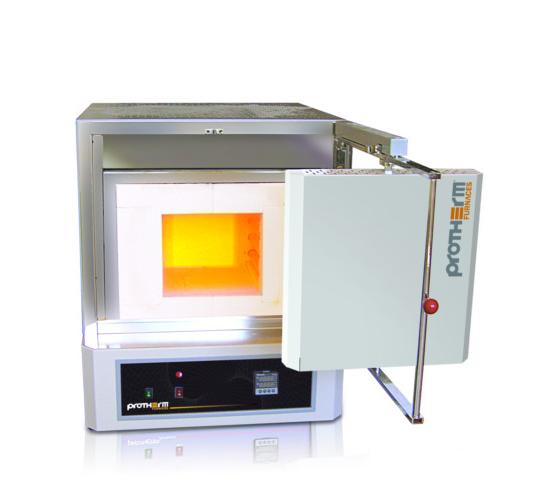

Custom designed vertical rotational door keeps the heat and the fumes away from the operator, enabling the furnace to fit in to tighter spaces. Standard brick design on the outer skirts of the door and the furnace opening provide protection from possible unwanted damages during loading.
System Features
Standard special design door
Standard door safety switch
Customized controller option
High-quality fiber material
High level temperature uniformity
Bottom protection, alumina plates on the floor
Standard door safety switch
Customized controller option
High-quality fiber material
High level temperature uniformity
Bottom protection, alumina plates on the floor
Rugged and durable design
High quality heating elements
Electrical protection
Dual skin housing for low external temperatures and high stability
Intuitive controller user interface
System operation with solid-state-relays
High quality heating elements
Electrical protection
Dual skin housing for low external temperatures and high stability
Intuitive controller user interface
System operation with solid-state-relays
Specifications
| Model | Maximum Temperature (°C) | Continuous Operating Temperature (°C) | Volume (L) | Inside Measurements (HxWxD) (cm) | Outside Measurements (HxWxD) (cm) | Power (kW) | Weight (kg) | Phase |
| PAF 110/6 | 1100 | 1050 | 6.3 | 15x21x20 | 65x55x58 | 2.0 | 56 | 1 |
| PAF 110/8 | 1100 | 1050 | 7.5 | 18x21x20 | 65x55x58 | 2.0 | 56 | 1 |
| PAF 110/10 | 1100 | 1050 | 10.0 | 20x20x25 | 72x56x64 | 2.7 | 64 | 1 |
| PAF 120/5 | 1200 | 1150 | 5.0 | 14x18x20 | 65x55x58 | 2.0 | 56 | 1 |
| PAF 120/7 | 1200 | 1150 | 7.3 | 14x20x25 | 65x55x58 | 2.0 | 59 | 1 |
| PAF 120/10 | 1200 | 1150 | 10.0 | 20x20x25 | 72x56x64 | 3.6 | 67 | 1 |
| PAF 120/12 | 1200 | 1150 | 12.0 | 20x20x30 | 72x56x64 | 3.6 | 70 | 1 |
Optional Features
Over-temperature limiter for thermal protection
Lift door
