ACF Series Chamber Furnaces

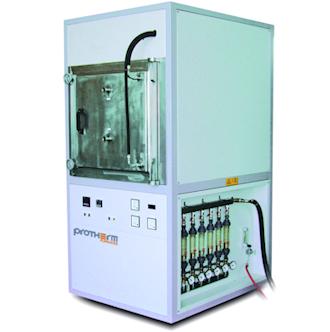

ACF GR 180/10
ACF series furnaces are specially designed for research and processes for larger volume products under controlled atmospheric conditions.

Standard ACF series furnaces cover a range from 1100°C to 1800°C, with additional standard equipment options.

Use of different heating elements, including Graphite is available for use with different gases.

The unit is equipped with galvanized coating covered epoxy painted structure, providing longer life time and aesthetics.




Furnace Accessories
Download Brochure
Request a Quote



System Features

Sideways opening door
Separate or integrated control system to the furnace
High level programmable controller
System operation with solid-state-relays
High level temperature uniformity
High-quality fiber material
Intuitive controller user interface
Electrical protection
Special housing for high temperature stability
High quality heating elements ensuring a long service life

Specifications

Model Maximum Temperature (°C) Continuous Operating Temperature (°C) Inner Volume (liters) Inner Dimensions (HxWxD) (cm) External Dimensions (HxWxD) (cm) Power (kW) Phase
ACF 110/6 1100 1050 6.3 15x21x20 182x89x93 2.0 1
ACF 110/10 1100 1050 10.0 20x20x25 182x89x93 2.7 1
ACF 100/15 1100 1050 15.0 23x22x30 182x89x93 3.6 1
ACF 160/4 1600 1550 3.9 14x14x20 182x89x93 4.4 1
ACF 160/8 1600 1550 8.1 18x18x25 182x89x93 7.2 3
ACF 160/12 1600 1550 12.0 24x20x25 188x93x98 9.0 3
ACF 160/16 1600 1550 15.8 24x22x30 188x93x98 11.3 3
ACF 170/4 1700 1650 3.9 14x14x20 182x89x93 4.4 1
ACF 170/8 1700 1650 8.1 18x18x25 182x89x93 7.2 3
ACF 170/12 1700 1650 12.0 24x20x25 188x93x98 9.0 3
ACF 170/16 1700 1650 15.8 24x22x30 188x93x98 11.3 3
ACF 180/4 1800 1750 3.9 14x14x20 182x89x93 4.4 1
ACF 180/8 1800 1750 8.1 18x18x25 182x89x93 7.2 3
ACF 180/12 1800 1750 12.0 24x20x25 188x93x98 9.0 3
ACF 180/16 1800 1750 15.8 24x22x30 188x93x98 11.3 3
ACF GR 180/10 1800 1750 9.7 20x22x22 182x93x100 13.0 3
Model Maximum Temperature (°C) Continuous Operating Temperature (°C) Inner Volume (liters)
ACF 110/6 1100 1050 6.3
ACF 110/10 1100 1050 10.0
ACF 100/15 1100 1050 15.0
ACF 160/4 1600 1550 3.9
ACF 160/8 1600 1550 8.1
ACF 160/12 1600 1550 12.0
ACF 160/16 1600 1550 15.8
ACF 170/4 1700 1650 3.9
ACF 170/8 1700 1650 8.1
ACF 170/12 1700 1650 12.0
ACF 170/16 1700 1650 15.8
ACF 180/4 1800 1750 3.9
ACF 180/8 1800 1750 8.1
ACF 180/12 1800 1750 12.0
ACF 180/16 1800 1750 15.8
ACF GR 180/10 1800 1750 9.7

Model Inner Dimensions (HxWxD) (cm) External Dimensions (HxWxD) (cm) Power (kW) Phase
ACF 110/6 15x21x20 182x89x93 2.0 1
ACF 110/10 20x20x25 182x89x93 2.7 1
ACF 100/15 23x22x30 182x89x93 3.6 1
ACF 160/4 14x14x20 182x89x93 4.4 1
ACF 160/8 18x18x25 182x89x93 7.2 3
ACF 160/12 24x20x25 188x93x98 9.0 3
ACF 160/16 24x22x30 188x93x98 11.3 3
ACF 170/4 14x14x20 182x89x93 4.4 1
ACF 170/8 18x18x25 182x89x93 7.2 3
ACF 170/12 24x20x25 188x93x98 9.0 3
ACF 170/16 24x22x30 188x93x98 11.3 3
ACF 180/4 14x14x20 182x89x93 4.4 1
ACF 180/8 18x18x25 182x89x93 7.2 3
ACF 180/12 24x20x25 188x93x98 9.0 3
ACF 180/16 24x22x30 188x93x98 11.3 3
ACF GR 180/10 20x22x22 182x93x100 13.0 3

Optional Features

Over-temperature limiter for thermal protection
Check valve at gas outlet
Gas supply and blend systems for operation
Data logger with the software
RS422/485 communication

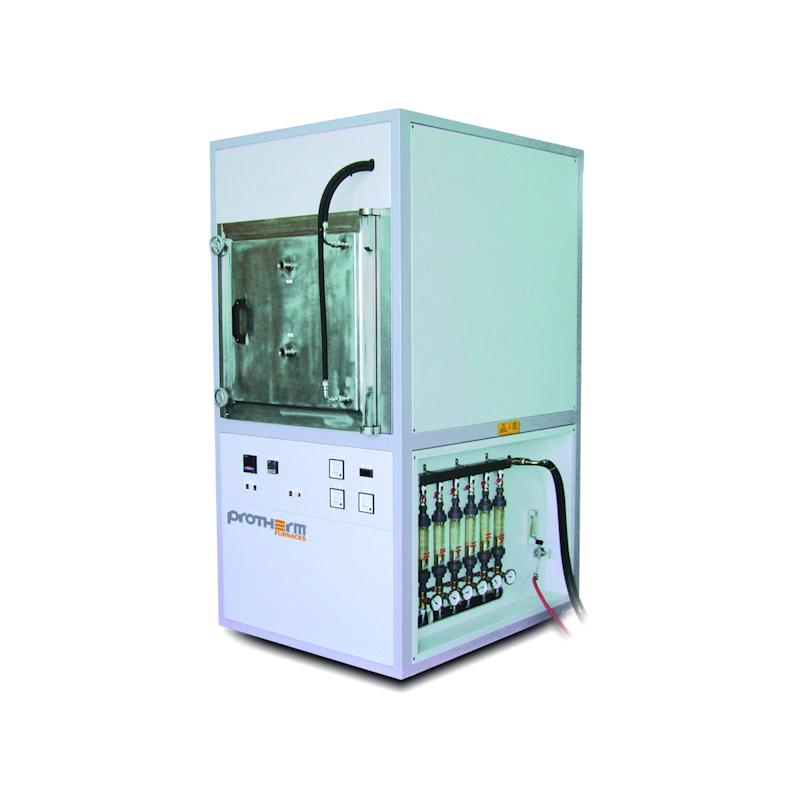

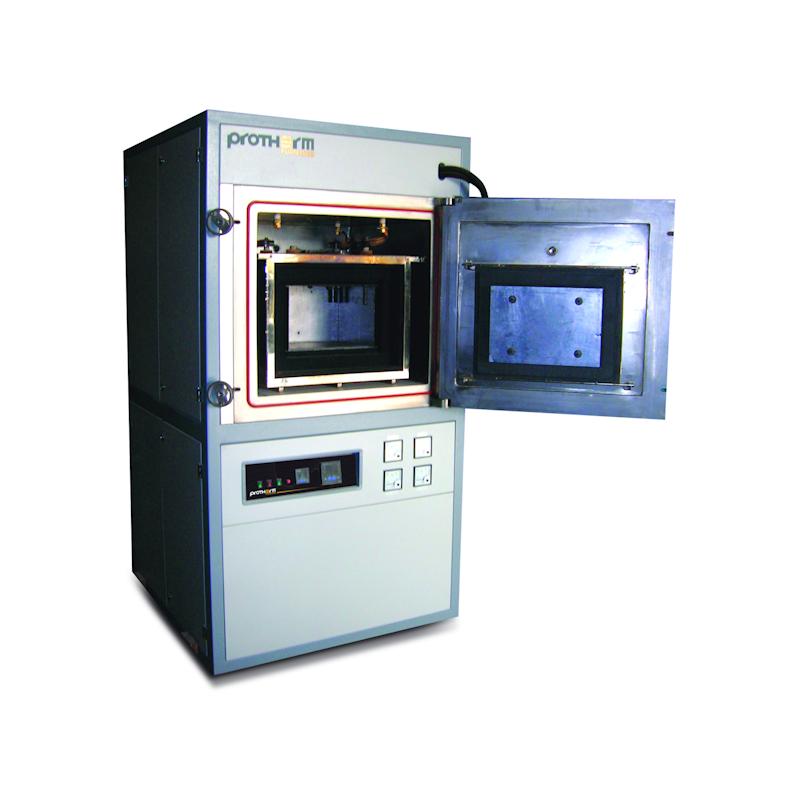

Product Photos
